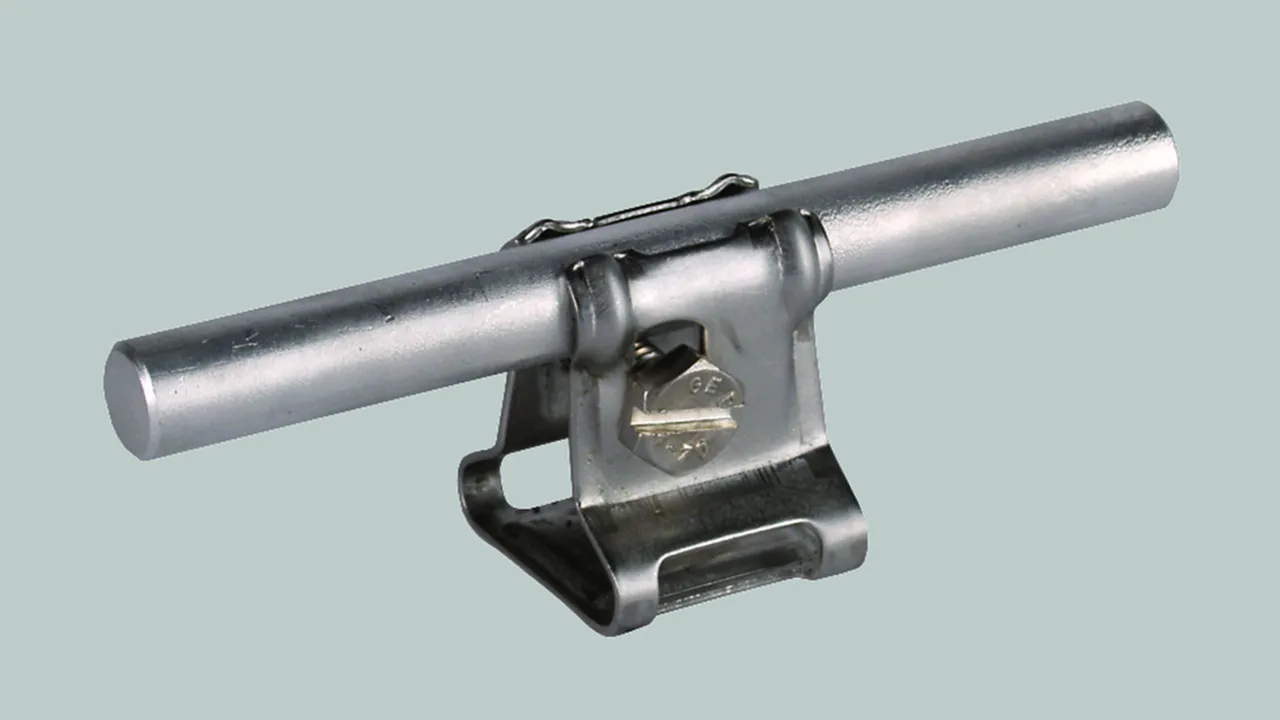

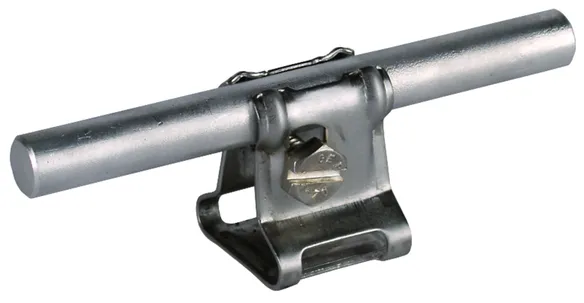

Conductor Holder with Claw

Conductor holder for wall mounting with M6 clamping screw.
Fixed conductor routing.

1 Product

Part No. 273019 LH KR 6.10 H22 B6.5 V2A

GTIN 4013364031487, Customs tariff No. (EU): 85389099, Gross weight: 23.60 g, PU: 50.00 pc(s)

Images

Additional information

Conductor holder with claw, StSt
Conductor holder with claw for wall mounting with M6 clamping screw,
fixed conductor routing
Hole Ø: 6.5 mm
Material of conductor holder: StSt
Conductor support Rd: 6-10 mm
Height of conductor holder: 22 mm

Brand: DEHN
Type: LH KR 6.10 H22 B6.5 V2A
Part No.: 273019
or equivalent.

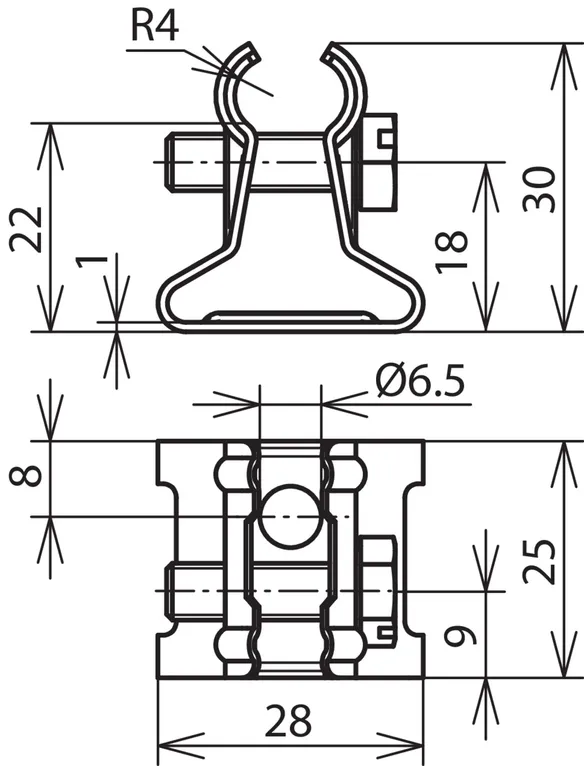

Technical data

Hole Ø 6.5 mm
Material of conductor holder StSt
Conductor support Rd 6-10 mm
Height of conductor holder 22 mm
Standard EN 62561-4
